Sep 8, 2026Process
Rapid Prototyping vs Mass Production Runs: How to Plan CNC Machining in Two Phases
Should you prototype first or go straight to production? How two-phase CNC machining works: prototype lead times, FAI gate, tooling considerations and how to scale without re-quoting everything.
Introduction
Every custom part conversation eventually reaches the same fork: build one carefully, then mass-produce — or jump straight to volume? The right answer is usually the two-phase approach: prototype first, production second — but only if your supplier is set up for both.
Here is how two-phase CNC machining works in practice, what it costs in time, and how to plan it without surprises.
Phase 1: prototype — prove the design cheaply
Purpose. A prototype answers the real questions: does the geometry work, do materials behave, do tolerances stack up on the assembly line?
Realistic expectations in CNC machining:
Rapid prototyping lead time: 3-7 days for a properly equipped shop with agile production lines
MOQ: 1 piece — a prototype-friendly supplier quotes and machines a single piece without a volume minimum
DFM at the drawing stage — before any metal is cut, the engineering team reviews manufacturability and flags expensive geometry, so the prototype you get is already the design you should mass-produce
What you get with every prototype batch: a free DFM review within 24 hours of receiving the CAD files, plus an itemized quote so you know what each feature costs.
The FAI gate: the moment prototypes become proof
This is the step most buyers skip — and the one that saves re-tooling costs later.
A First Article Inspection (FAI) measures the first production-candidate part against the drawing, feature by feature. If the FAI passes, the process is approved as the reference for production. If it doesn't, you find out now — before tooling, batching and shipping have all happened.
Demand the FAI with CMM-based results on critical features, plus a material certificate (CoC). The prototype isn't done when it looks right; it's done when it measures right.

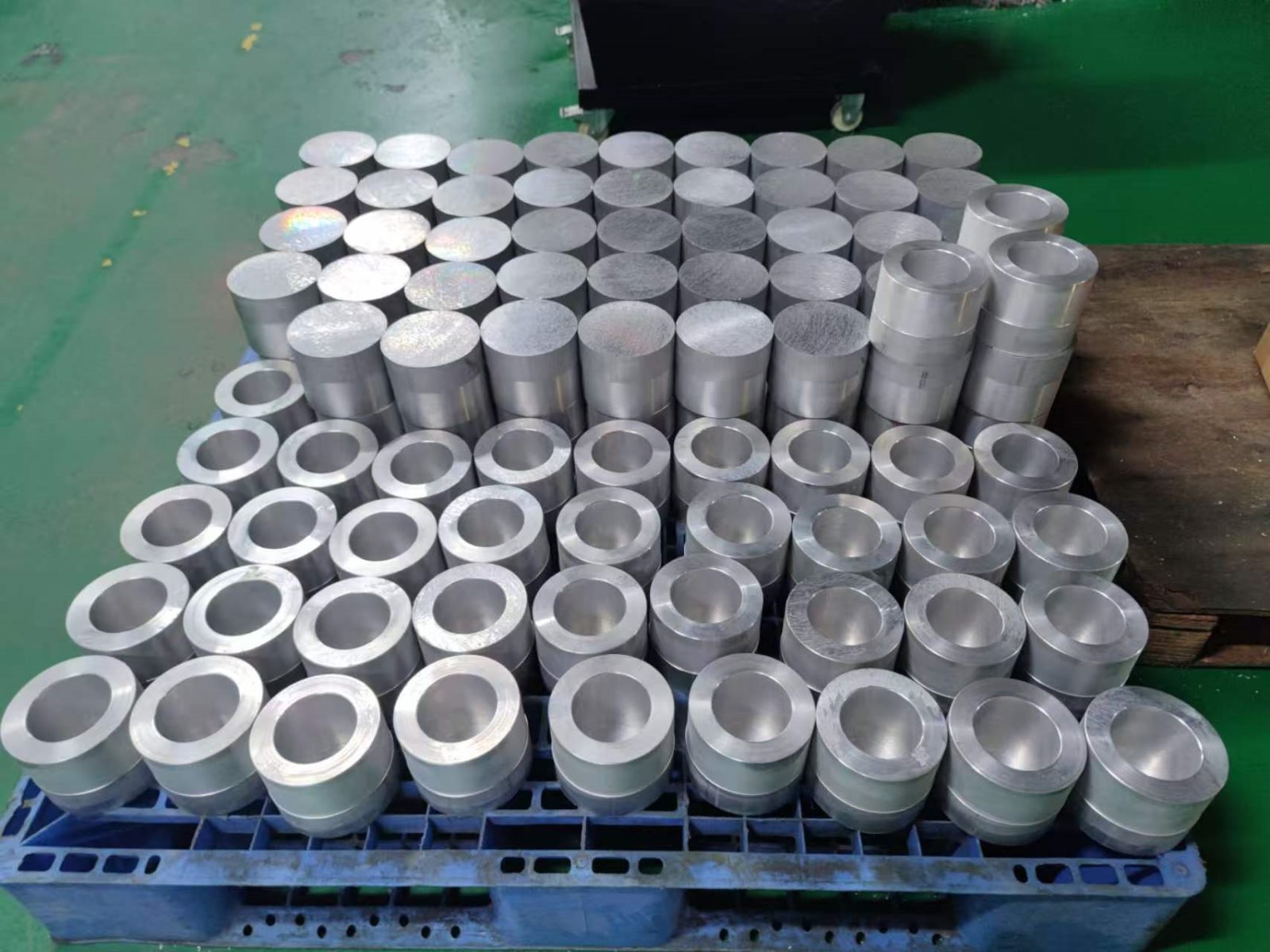

Phase 2: production — scale with the same process
Once the design is proven, mass production is a scaling exercise, not a new project:
Mass production lead time: 2-4 weeks, depending on quantity and complexity
The same machining process — same tools, same programs, same inspection plan — so consistency comes from process, not from luck
Inspection at scale: 100% inspection on critical features, with records maintained for traceability
If the prototype and production supplier are the same shop, the FAI, tooling and processes are reused directly — no handover, no re-verification, no re-quoting from zero.
What changes — and what doesn't — in a run of 1,000
The honest economics of machining runs: thinking in three slices helps.
One-time costs (DFM, programming, tooling) drop per piece as volume grows — they are the same whether you machine 5 pieces or 5,000
Material and setup economies appear with volume: batch material prices and dedicated fixtures lower unit cost, while small prototype runs use simplified fixturing
Inspection scales and matures: the prototype run delivers FAI plus critical-dimension checks; production runs add 100% inspection records and batch traceability
The trade-off is real: per-piece price falls with volume, but the DECISIONS are still the same — tolerances, materials, finishes, inspection plan. That is exactly why the two-phase approach works: you make all the expensive decisions once, on 5 pieces, not on 5,000.
Common mistakes to avoid
Skipping the prototype to save it. The change you discover after tooling costs 10x the prototype you skipped
Prototyping at one supplier, producing at another without FAI handover. Different machines, different programs — every tolerance "proved" at prototype may behave differently in production
Cranking tolerance expectations without confirmation. Standard band is ±0.01mm to ±0.05mm; high precision up to ±0.005mm geometry permitting — asking for the tighter band everywhere costs money where it buys nothing
Ignoring drawing formats. Send STEP/IGS or native CAD with a 2D drawing (PDF/DWG/DXF); ambiguity at this stage lingers through every phase
The supplier checklist for two-phase work
Can they quote 1 piece (prototype) AND scale to mass production?
Is the DFM review part of the quote, not an upsell?
Will FAI + CMM results and CoC ship with the first production batch?
Is 100% inspection documented on critical features?
Do they protect your IP with an NDA before drawings are shared?
Your next step
Plan the two phases with one supplier who runs both — for example, Idar Tech in Dongguan, China (ISO 9001:2015): rapid prototyping in 3-7 days from 1 piece, mass production in 2-4 weeks, free DFM review and itemized quote within 24 hours, and CMM-verified inspection with every batch — a signed NDA before your drawings leave your desk.
