CNC Turning Parts

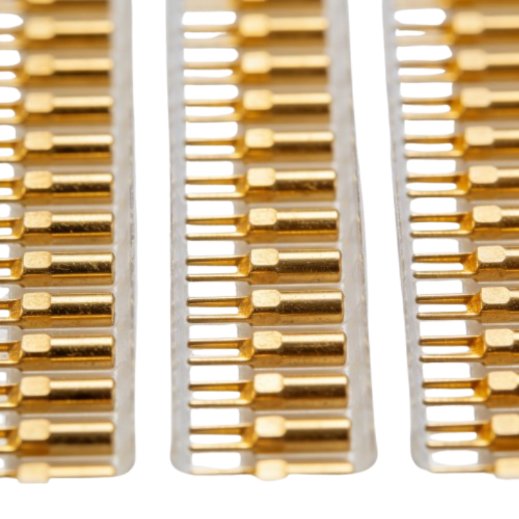

Gold Plated Brass Contact Pin and Socket for Electrical Connector
CNC Turning Gold Plated Brass Contact Pin and Socket for Electrical Connector for electronic products
Specifications
- Material
- Brass & Copper (e.g. 3602-H; per drawing)
- Machining
- CNC Turning, precision contact machining
- Surface Finish
- Gold plating per drawing; nickel / silver / zinc plating on request
- Tolerance
- Standard ±0.01mm - ±0.05mm; High Precision up to ±0.005mm (per drawing)
- Quality & Documents
- ISO 9001:2015 Certified; 100% inspection; CMM Report, FAI, CoC with shipment
- MOQ
- 1 piece (rapid prototyping available)
- Lead Time
- Prototypes: 3-7 days; Mass production: 2-4 weeks
Parameters & Details Specifications
Product Name: Custom Precision CNC Machined Parts / Non-standard Mechanical Components
Machining Processes: CNC Milling (3-Axis, 4-Axis, 5-Axis), CNC Turning, Swiss Lathe Machining, Wire EDM, Grinding, Drilling, Tapping
Material Capabilities (Metals): Aluminum: 6061-T6, 7075-T6, 6063, 5052, 2024, Stainless Steel: 303, 304, 316L, 17-4PH, 440C, Steel: Mild Steel, Carbon Steel (1018, 1045), Tool Steel (D2, A2, H13), Brass & Copper: C36000, C11000, Bronze, Phosphor Bronze, Titanium: Grade 2, Grade 5 (Ti-6Al-4V)
Material Capabilities (Plastics): POM (Delrin/Acetal), PEEK, Nylon (PA6, PA66), ABS, PC (Polycarbonate), PTFE (Teflon), PMMA (Acrylic), PVC
Machining Tolerance: Standard: ±0.01mm - ±0.05mm High Precision: Up to ±0.005mm (depending on geometry)
Surface Finishes: Anodizing: Clear, Black, Color, Hard Anodizing (Type II, Type III), Plating: Nickel, Zinc, Gold, Silver, Chrome Plating, Coating: Powder Coating, Painting, Teflon Coating, Others: Sandblasting (Bead Blasting), Polishing, Brushing, Passivation, Laser Engraving, Heat Treatment
Surface Roughness: As Machined (Ra 3.2), Smooth (Ra 1.6), Polished (Ra 0.8), Mirror Polish (Ra 0.4 or better)
Max Machining Size: Milling: Up to 1000mm x 600mm x 500mm , Turning: Max Diameter 300mm, Length 500mm
Quality Assurance: ISO 9001 Certified, 100% Inspection before shipment, CMM Report, Material Certificate (CoC), First Article Inspection (FAI)
Drawing Formats: 3D: STEP (.stp), IGS (.igs), X_T, SolidWorks (.sldprt), 2D: PDF, DWG, DXF
MOQ (Min Order Qty): 1 Piece (Rapid Prototyping available)
Lead Time: Prototypes: 3-7 Days, Mass Production: 2-4 Weeks (Depending on quantity and complexity)
Industry Applications: Aerospace, Medical Devices, Automotive, Robotics, Industrial Automation, Electronics, Optical Instruments, Semiconductor
Packaging: Eco-friendly Bubble Wrap, EPE Foam, Carton Box, Wooden Case (Custom packaging available upon request)
Shipping Methods: Express (DHL, FedEx, UPS, TNT), Air Freight, Sea Freight, By Train
