The Complete Guide to CNC Machining Surface Finishes: Roughness, Anodizing & Plating Explained
What Ra roughness numbers actually mean, when to specify anodizing vs plating vs powder coating, and how surface finish drives cost and tolerance. A practical machining finish guide for engineers.
Introduction
Surface finish is treated as decoration in most sourcing conversations — and as specification in the ones that matter. The same part, fresh from the machine, with a good anodize or a chrome plate, behaves completely differently: it wears differently, seals differently, conducts differently, and looks like a different product entirely.
This guide explains the three building blocks of part finishing — roughness, anodizing and plating — plus the everyday treatments in between, so you can specify finishes with intent instead of by habit.
Roughness: what Ra numbers actually mean
Roughness is measured as Ra (average roughness height) and is expressed in microns. The practical grades used in CNC machining:

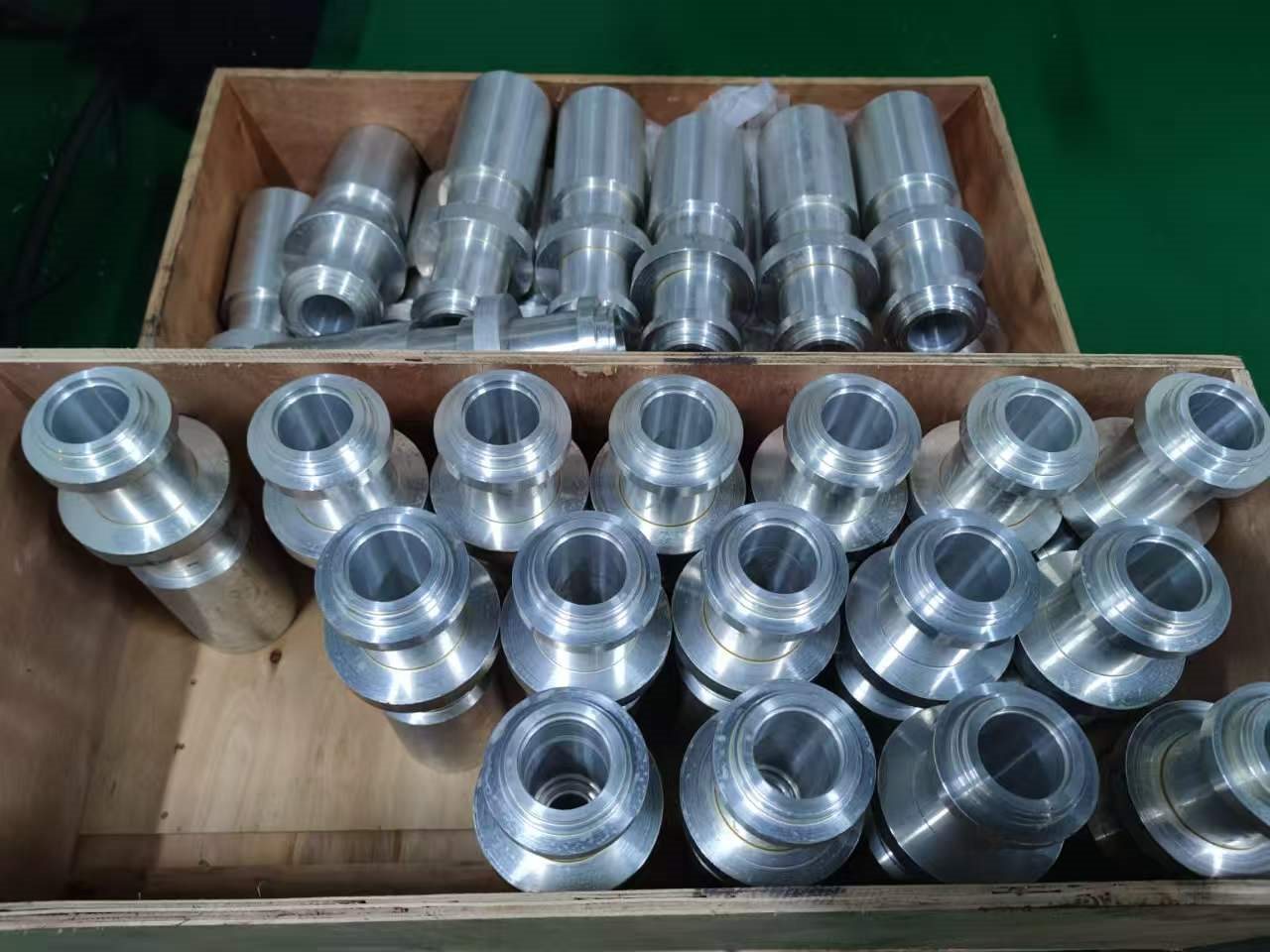

As machined (Ra 3.2) — the default surface straight off the machine. Fine for most functional parts, housings and non-sealing surfaces; the fastest and cheapest to produce
Smooth (Ra 1.6) — the everyday business surface: visible machine marks are gone, close-fitting metal parts look intentional
Polished (Ra 0.8) — where surfaces see sliding contact, seal against something, or need to be presentable
Mirror polish (Ra 0.4 or better) — optical-grade appearance and lowest friction; the finish you choose deliberately because the part needs it, not because it is on the drawing by default
Choose the roughest grade your part tolerates — every 0.8 improvement costs time, setups and inspection. The same part at Ra 3.2 versus Ra 0.4 is a different quote.
Anodizing: aluminum's superpower
Anodizing converts the aluminum surface into a controlled oxide layer. Because it is grown from the material itself, it never peels — and it opens the door to color, wear and reflectivity control.
The practical choices:
Clear anodize — the standard protection look; subtle, technical
Black anodize — the workhorse for industrial parts; matte if the process is paired with sandblasting
Color anodize — where branding or differentiator color is a real requirement
Hard anodize (Type II/III classes) — the wear-resistant option for sliding or abrading aluminum surfaces
For optical work: matte black anodizing is a two-step treatment — sandblasting first for micro-roughness, then black anodizing — producing a very low reflectivity surface that absorbs stray light instead of reflecting it. If your laser housing or lens mount calls for matte black, the blind-free question to your supplier is: do you blast AND anodize, or just dye?
Plating: metals applied on metal
Plating uses the part as a substrate and builds a layer of another metal. The metals matter:
Nickel — corrosion resistance and wear; the functional plate for industrial parts
Zinc — the corrosion layer for steel parts, commonly followed by a conversion coating
Gold — where signal integrity matters: connector contacts, pins and sockets. Brass or copper parts plated gold are the standard for reliable electrical connections
Silver — conductivity and performance applications
Chrome — wear, hardness and gloss
Plating changes dimensions slightly — a plated layer adds material to the surface. Call this out in the drawing so the pre-plate machining and the plating thickness are both engineered, not assumed.
Coatings and the rest of the toolbox
Between roughness and plating, the everyday treatments used on machined parts:
Powder coating — durable, thick, uniform color for enclosures and structural parts
Painting — where a specific finish family matters more than coating hardness
Teflon coating — low friction and release properties for food and process machinery parts
Sandblasting (bead blasting) — the uniform, matte, industrial texture; also the preparation step for matte anodizing
Polishing and brushing — decorative or functional smoothness; brushing gives the brushed-metal look
Passivation — the chemical finish for stainless steel that restores and stabilizes its corrosion resistance
Laser engraving — part numbers, logos and traceability marks without touching the surface chemistry
Heat treatment — hardness and strength for steel parts, typically followed by grinding for dimension accuracy
How to match finish to material and application
A few rules of thumb that cover most parts:
Aluminum → anodizing (clear, black, hard) — the natural choice
Stainless → passivation, or polishing for demanding surfaces
Steel (carbon/tool) → zinc or nickel plating, heat treatment when hardness is required
Brass/copper → gold or nickel plating for contacts and conductivity
Any mechanical part needing low friction → polished or Teflon coating
Optics/light path → matte black anodizing (blast + anodize)
Enclosures/panels → powder coating or painting for durability and appearance
How finish interacts with tolerance and cost
Two honest notes:
Finishing happens at the end. Roughness and coatings are applied after machining, and plating adds dimension. Your tolerance work and your finish spec must be coordinated — a plated contact seat is machined undersized for the plate, then measured after.
Every step costs. Roughness grades, blasting, anodizing, plating and inspection all add process steps. A part finished at Ra 0.8 with black anodize is objectively worth more than the same part as-machined — and your drawing should only ask for what it truly needs.
What to specify on your drawing
The Ra grade for each functional surface (not a blanket "polished" note)
The finish family and class — "black anodize" vs "hard anodize Type III" vs "gold plate" — with the material it applies to
Which finish is for function (corrosion, wear, signal) and which is for looks (so the shop can quote honestly)
Sample preference — ask for a finished sample on the prototype, not just a color swatch
Your next step
Send your part with the finish thinking attached — a shop with the full process chain can advise on the finish economics directly. Idar Tech in Dongguan, China (ISO 9001:2015) covers the range: as machined to mirror polish (Ra 0.4+), hard anodizing (Type II/III), plating (nickel, zinc, gold, silver, chrome), powder and Teflon coatings, bead blasting, passivation, laser engraving and heat treatment — with material certificates and CMM-verified inspection, quoted itemized within 24 hours.
