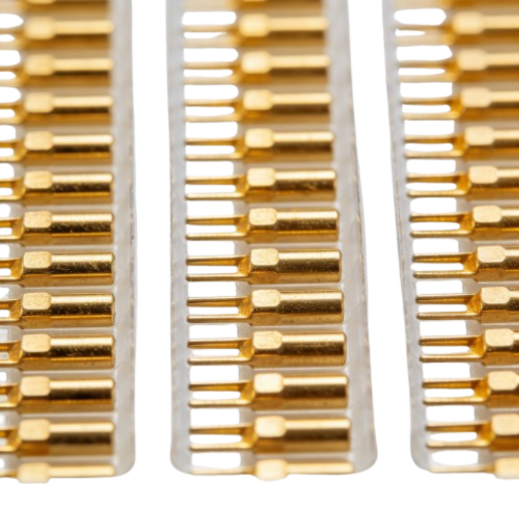

CNC Turning Gold Plated Brass Contact Pin and Socket for Electrical Connector for electronic products
Parameter | Details / Specifications |
Product Name | Custom Precision CNC Machined Parts / Non-standard Mechanical Components |
Machining Processes | CNC Milling (3-Axis, 4-Axis, 5-Axis), CNC Turning, Swiss Lathe Machining, Wire EDM, Grinding, Drilling, Tapping |
Material Capabilities (Metals) | Aluminum: 6061-T6, 7075-T6, 6063, 5052, 2024<br> Stainless Steel: 303, 304, 316L, 17-4PH, 440C<br> Steel: Mild Steel, Carbon Steel (1018, 1045), Tool Steel (D2, A2, H13)<br> Brass & Copper: C36000, C11000, Bronze, Phosphor Bronze<br> Titanium: Grade 2, Grade 5 (Ti-6Al-4V) |
Material Capabilities (Plastics) | POM (Delrin/Acetal), PEEK, Nylon (PA6, PA66), ABS, PC (Polycarbonate), PTFE (Teflon), PMMA (Acrylic), PVC |
Machining Tolerance | Standard: ±0.01mm - ±0.05mm High Precision: Up to ±0.005mm (depending on geometry) |
Surface Finishes | Anodizing: Clear, Black, Color, Hard Anodizing (Type II, Type III)<br> Plating: Nickel, Zinc, Gold, Silver, Chrome Plating<br> Coating: Powder Coating, Painting, Teflon Coating<br> Others: Sandblasting (Bead Blasting), Polishing, Brushing, Passivation, Laser Engraving, Heat Treatment |
Surface Roughness | As Machined (Ra 3.2), Smooth (Ra 1.6), Polished (Ra 0.8), Mirror Polish (Ra 0.4 or better) |
Max Machining Size | Milling: Up to 1000mm x 600mm x 500mm <br> Turning: Max Diameter 300mm, Length 500mm |
Quality Assurance | ISO 9001 Certified, 100% Inspection before shipment, CMM Report, Material Certificate (CoC), First Article Inspection (FAI) |
Drawing Formats | 3D: STEP (.stp), IGS (.igs), X_T, SolidWorks (.sldprt)<br>2D: PDF, DWG, DXF |
MOQ (Min Order Qty) | 1 Piece (Rapid Prototyping available) |
Lead Time | Prototypes: 3-7 Days<br> Mass Production: 2-4 Weeks (Depending on quantity and complexity) |
Industry Applications | Aerospace, Medical Devices, Automotive, Robotics, Industrial Automation, Electronics, Optical Instruments, Semiconductor |
Packaging | Eco-friendly Bubble Wrap, EPE Foam, Carton Box, Wooden Case (Custom packaging available upon request) |
Shipping Methods | Express (DHL, FedEx, UPS, TNT), Air Freight, Sea Freight, By Train |
